Recommended wear check: VB100 motor protection filter

The motor protection filter protects your cordless vacuum cleaner from contamination. Regular visual inspection and maintenance of the motor protection filter is particularly important for ensuring that your cordless vacuum cleaner has a long service life. The motor protection filter can be cleaned repeatedly. It only needs to be replaced if the premium filter bag is damaged or the motor protection filter gets extremely dirty or sticky.

REMOVE AND REPLACE THE MOTOR PROTECTION FILTER

The motor protection filter is held in place in the filter cover of the cordless vacuum cleaner by two guide slots.

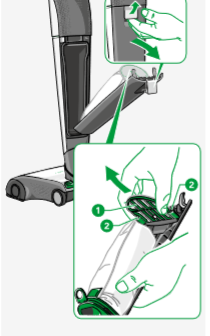

1. Press the motor protection filter in on both sides and carefully pull it upwards out of its guide slots.

2. Push the clean or new motor protection filter back into the guide slots in order to use it again. The green plastic grille should face in the direction of the premium filter bag.
