How to install the wall mount for the Vk7

The wall mount for your Vorwerk VK7 vacuum cleaner is an incredibly useful accessory that helps you save space and conveniently store your vacuum cleaner. With the wall mount, you can keep your VK7s within easy reach while keeping your floors clean and organized. This article provides a step-by-step guide on how to install the wall mount for your VK7, accompanied by illustrative images for each step.

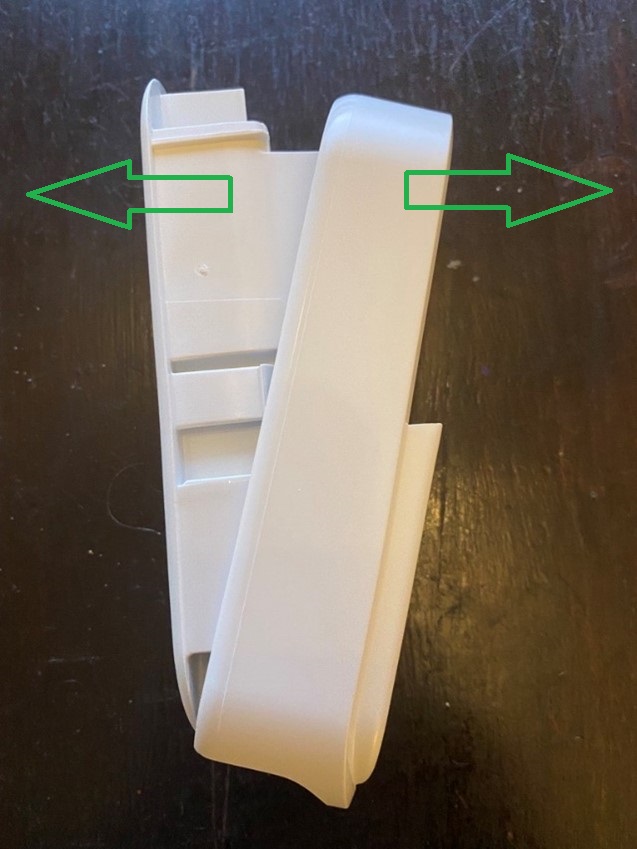

Step 1: Open the lid by pulling outwards. Firmly grasp the lid and pull it outwards to open it. The interior compartment where the charging connector and cable will be connected will be visible.

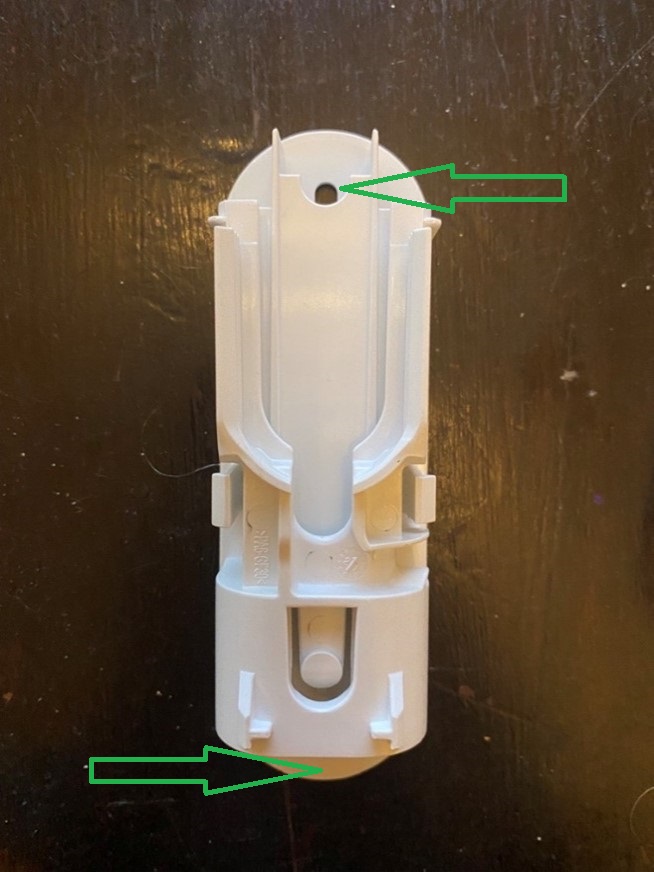

Step 2: Mount the base to the wall with 2 dowel screws at the desired height. Choose a suitable position on the wall to mount the VK7 wall base. Ensure that the height is sufficient to accommodate the vacuum cleaner. Align the base with the screws and securely fasten it to the wall.

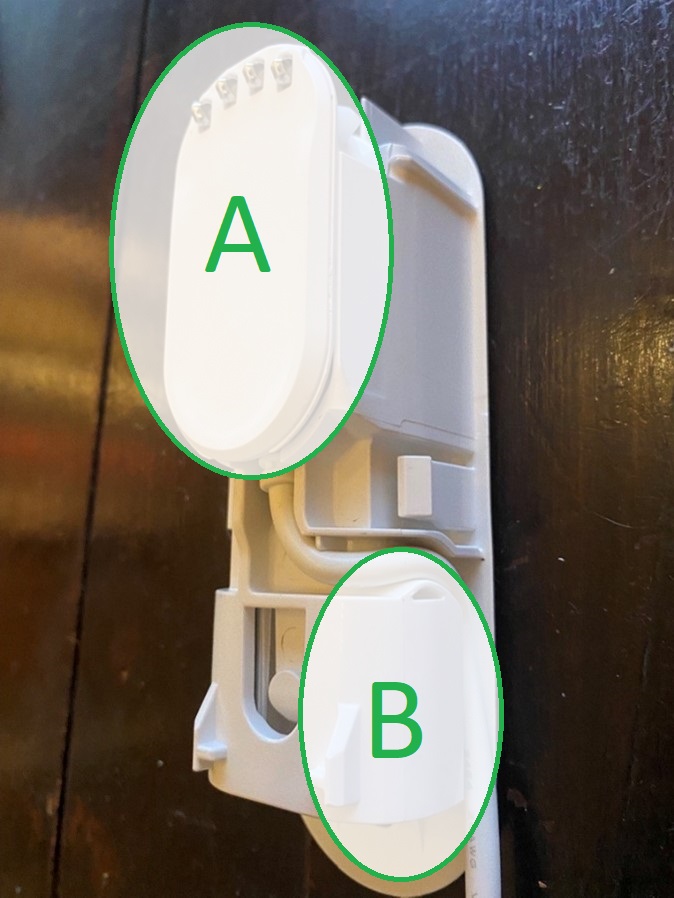

Step 3: Insert the charger connector A into the appropriate slot and slide the cable B sideways. Ensure that the cable is properly positioned and free from tangles.

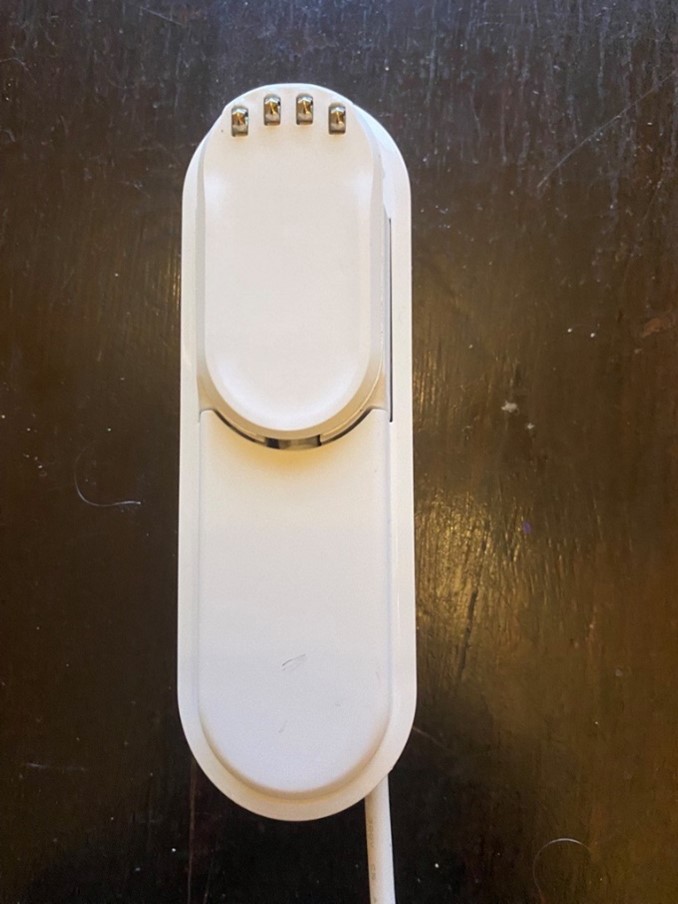

Step 4: Close the lid once the charging connector and cable are in place.
